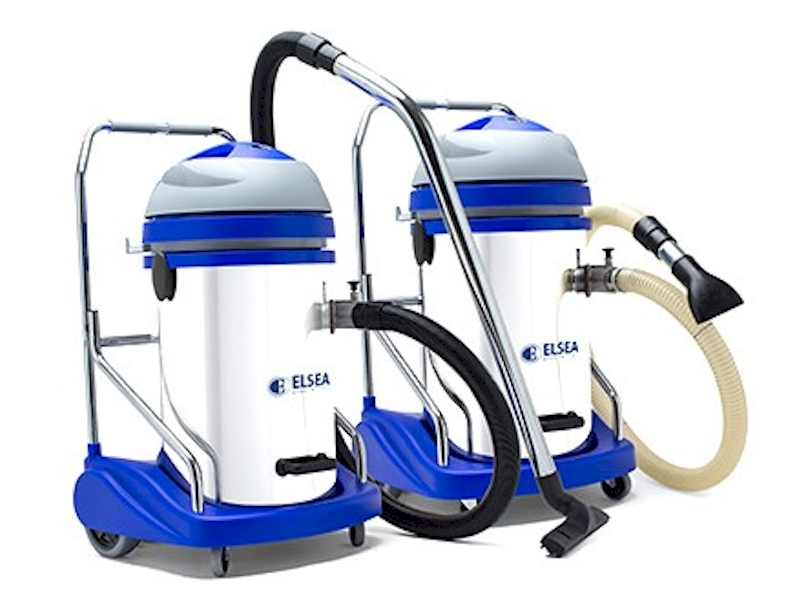

Maximus 2 & 3 Motor Swarf Vacuum
Wet or Dry Application
The Maximus 2 or 3 motor vacuum is designed for swarf recovery.
Available in 2 motor – 10amp or the larger 3 motor 15 amp unit giving that extra power when required collecting metal shavings and other work shop waste.
Specifications:
- 2 motor 2400w
- 3 motor 3600w
- 240v 10 or 15 amp
- 76L Stainless steel tank
- Weight 30.2kg
- Water lift 2400mm

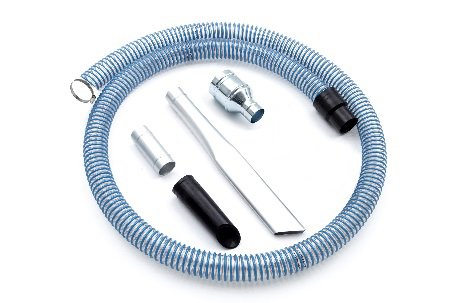

Complete with the following:
- 3 meter oil resistance hose
- Cyclone cone
- washable filter
- Crevis tool
- Gulper tool
- Adaptor
- Rubber cone nozzle
The Maximus is an affordable vacuum for any workshop where swarf is an issue.

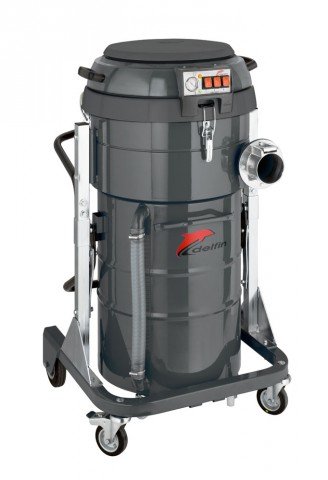

Industrial Vacuum for Oil, Swarf & Chips Recovery
A unique example of compactness and performance, the DM 40 OIL has been designed to meet the most demanding requirements of extraction and recovery of liquids, oils, swarf and emulsions, whether or not mixed with dust or mud.
A series of filters always protects engines from oil and shavings.

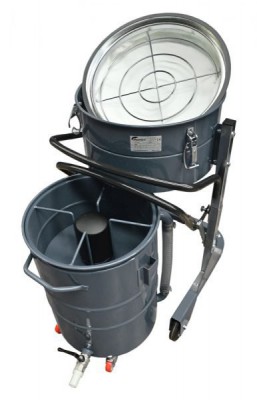

Thanks to the detachable container the discharge of collected material becomes fast and easy, minimising the time of cleaning and consequently the downtime of production.
Main Features
- Detachable collection container with integrated floating device for liquids
- Sieve basket for liquid / solid separation, swarf etc
- Level indicator for vacuumed liquids
- Dust filter for dry cleaning service
- Tangential suction inlet with integrated cyclone
DM40 OIL – Specifications
| MODEL | DM40 OIL |
|---|---|
| Power (Voltage) | 230 – 1 |
| Frequency (Hz) | 50 |
| Power (kW) | 3.4 |
| Depression (mmH2O) | 2500 |
| Airflow max. (m3/h) | 540 |
| Capacity (Litres) | 100 |
| Swarf capacity (Litres) | 40 |
| Floating | YES |
| Suction inlet diameter (mm) | 80 |
| Sound level – dB(A) | 76 |
| Dimensions (cm) | 69 x 66 x 113H |
