Explosion Proof Vacuums

Explosion Proof Vacuums

Explosion Proof Vacuums

Examples of potentially combustible dust include cereals, flour, starch, sugar, animal feed, light metals, coal, plastics, and textiles. If there is a sufficient concentration of these substances, mixed with air, an ignition source can cause an explosion. This explosion can be devastating destroying buildings, equipment and cause fatalities when human life is present.

We have a range of Explosion Proof Vacuums that can serve your business well and keep your staff safe.

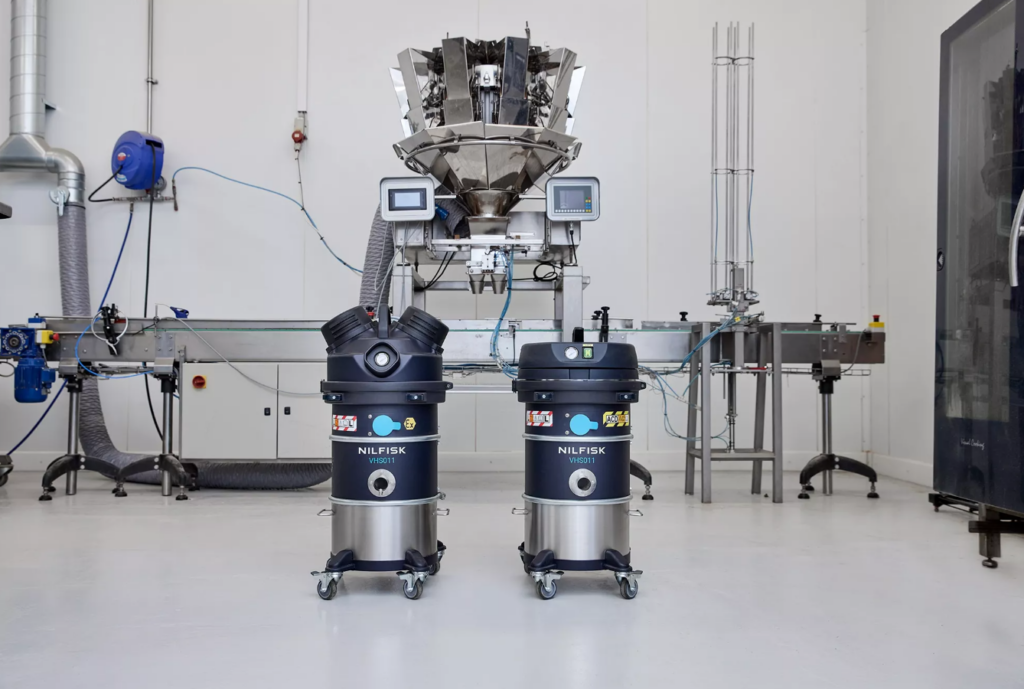

VHS010 and VHS011 Mini Industrial Vacuums

Our VHS010 and VHS011 models are a range of 3rd party Zone22-certified vacuums designed to meet NZ regulations and suitable for the collection of combustible dusts, hazardous dusts in classified areas.

This mini range is designed for its portability, lightweight nature, its compactness, and complies with local regulations.

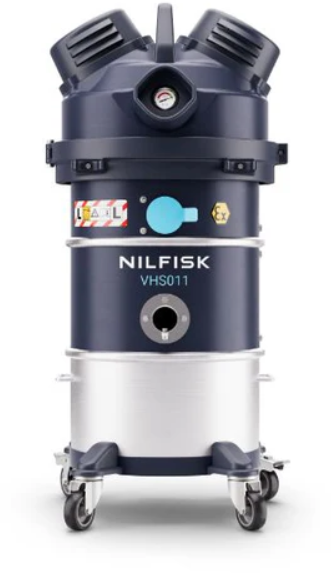

VHS011 LC Z22 EXA

All the power, safety, and durability you find in our larger models, only with a smaller more flexible foot print.

  • 240v – 950w
  • 2750 L/m air flow
  • 15L tank capacity
  • 40mm tooling and hose
  • 72dB(A)
  • 410 x 430 x 830H
  • 21Kg

Unit is complete with 40mm tool set and our Push Clean System ensuring the filter is kept clean and performance is maintained.

This unit is also available in H Class.

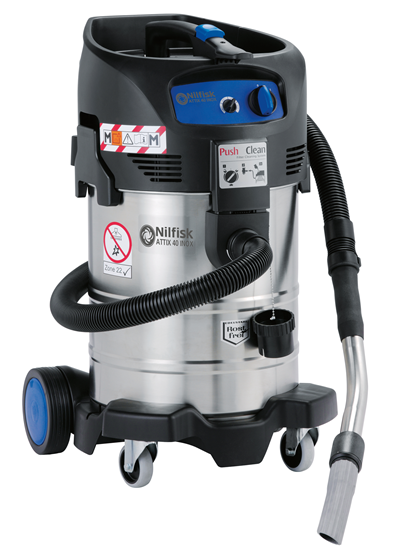

ATTIX 40-0M PC TYPE22 – Note : This unit no longer certified for Zone 22 areas

Built to pick-up combustible/flammable dust in ATEX Zone 22

The ATTIX 40 TYPE 22 machine is a powerful vacuum cleaner with stainless steel containers approved to be used for both M-class dust and ATEX Zone 22 environments. The build-in FlowSensor and acoustic warning signal monitors air speed in the suction hose to make sure that is does go below the minimum 20 m/s. The perfect concept for Industrial use where safety is a must.

Legislation (IEC/EN 60335-2-69) has placed some very tight restrictions on handling hazardous dust. The TYPE 22 vacuum cleaners fullfil all demands at the highest level of safety to ensure maximum health protection. The use of EC technology meaning single-phase brushless motor makes the machine applicable in ATEX Zone 22 environments. With the electrically conductive and grounded container inlet in combination with the TYPE 22 accessories the vacuum cleaner allows you to work with a safe and spark free solution.

ATTIX 40-0M TYPE 22 is a mid-size vacuum cleaner featuring Push&Clean filter cleaning system to increase efficiency and reduce downtime.

In all models, your operating costs are minimized with the washable PET fleece filter elemens, and user-friendliness reaches an all-time high with the low working sound level, which lets you work when others are nearby without disturbing them.

  • Approved for cleaning and dust extraction in ATEX Zone 22 enviroments with explosive dust
  • Brushless long life EC motors for ignition source-free performance
  • High quality stainless steel container
  • Washable PET fleece filter with minimum 99.9% filtration efficiency
  • A full range of TYPE 22 accessories is available to tailor your machine to your application

Brochure – ATTIX 40-0M PC TYPE22

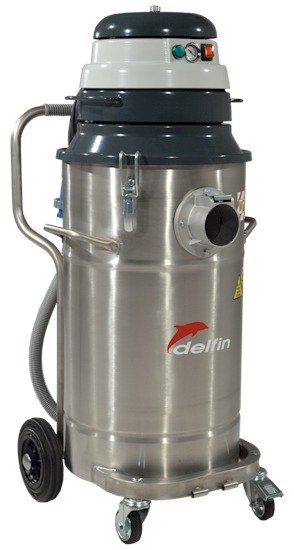

Delfin 802BL Z22 1 Phase

The 802 Brushless vacuum cleaner is the ideal solution for sucking up large quantities of liquids mixed with dust. Steel container with large liquid storage capacity and easy machine handling make it the perfect solution for all types of liquid waste. Double antistatic filtration kit and grounding make it suitable for sucking up liquids in low-risk areas. The handy drainage valve on the rear means it is quick and easy to empty.

The motor head is equipped with a Brushless motor: the lack of carbons allows the use of the machine even in explosive hazardous areas. The motor is protected by a series of filters and it is turned on by an independent switch placed on a soundproofed and robust metal motor head. The motor head includes a vacuum gauge and tension power lights as standard.

A vacuum gauge enables to check constantly the state of the filter and detect possible clogging, warning the operator that the filter must be cleaned. The vacuum cleaner is supplied with a double filtration kit. The wet kit consists of a floating device for the automatic stop when bin is full; a PPL filter to protect motors and a discharge hose, for the simple discharge of the vacuumed liquids. The dust kit consists of an antistatic polyester filter with a self-cleaning system: thanks to an elastic band, the dust shakes off each time the vacuum is switched off.

The vacuumed material is placed inside an AISI304 stainless steel drop-down bin mounted on wheels, which makes it possible to dispose easily and safely of the vacuumed material. The vacuumed liquid can be discharged by means of a discharge hose placed on the back of the vacuum cleaner.

Brochure – Delfin 802BL Z22 1 Phase

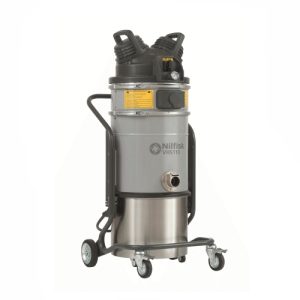

Nilfisk VHS 110 EXA Z22

Nilfisk VHS 110 EXA Z22Single phase industrial vacuums for use in Atex Z22 locations.

The VHS110 Z22 is the innovative single phase industrial vacuum cleaner suitable for Atex Z22 locations. Thanks to the brushless motor, this machine ensures high performance. Moreover it needs less maintenance and is suitable for continuous use.

The innovative PullClean system effectively cleans the antistatic star filter while the vacuum is running, without the need to stop working.

The optional HEPA14/ULPA15 upstream filter is the perfect choice when collecting fine dusts. The modular design makes it extremely easy to service and upgrade in the field. With its 400 mm diameter​ the VHS110 ATEX is a compact in order to be easily used everywhere, but has a good capacity thanks to its 37 litre removable container. The simple design makes it easy to clean and sanitise.

Specific versions for additive manufacturing are available.

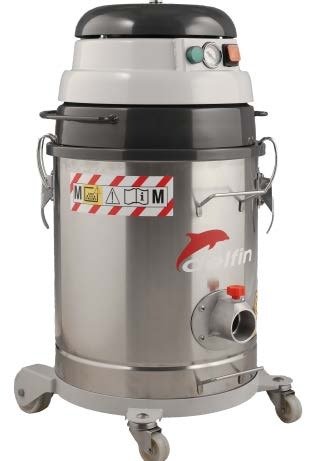

Deflin – Brushless 300BL

Compact, handy and extremely versatile.

The new 300BL is the perfect vacuum cleaner for applications including dust in those areas where Z22 certified equipment is required.

The new Brushless motorhead guarantees top vacuum performances even with continuous applications in Z22 areas.

AISI304 stainless steel bin, grounding and antistatic polyester filter are standard, providing maximum safety when vacuuming.

  • Z22 Certified
  • Earth grounding
  • Compact and mobile
  • Stainless steel AISI304 collection tank
  • Motor with very long service life
  • Easy to clean and to maintain
  • Easy filter replacement
  • Maximum safety thanks to the three levels of air filtration
  • Vacuum gauge to detect filter clogging
  • E10 upstream and downstream

Brochure – Deflin – Brushless 300BL

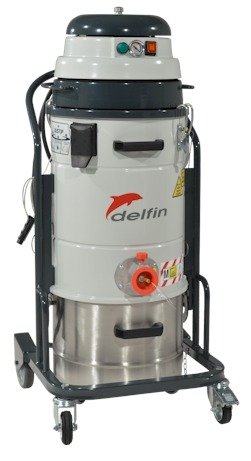

Deflin 202BL Z22 1 Phase

The 202 BL industrial vacuum cleaner is characterised by its compactness, its outstanding ease of handling and exceptional filtration provided by an antistatic Class M polyester filter.

It is the safest and most compact Z22 certified vacuum cleaner on the market when it comes to dealing with fine dust.

Thanks to the DUSTOP system, which uses differential pressure to clean the filter, maximum performance and safety is guaranteed, even when working in explosive atmospheres.

  • Z22 Certified
  • Earth grounding
  • Compact and mobile
  • Stainless steel AISI304 collection tank
  • Complete steel construction
  • Motor with very long service life
  • Easy to clean and to maintain
  • Easy filter replacement
  • Maximum safety thanks to the three levels of air filtration
  • Dustop filter cleaning system
  • E10 upstream and downstream

Brochure – Deflin 202BL Z22 1 Phase
