BloVac

BloVac Zeph-AIR

V500 Zeph-AIR by BloVac
V500 Zeph-AIR by BloVac

Sold both nationally and globally, the environmentally friendly BloVac products are ideally designed for any general or industrial applications you may have. Whether it be for high performance vaccuming, blow cleaning, waste recovery, through to conveying and fume removal. A BloVac product cab be matched to suit your needs.

Every Production Plant produces waste material, both wet and dry. The Blovac range with its accessories has been developed for the collection of waste and small parts produced by many industrial processes – economically and safely.

The exceptional efficiency of these products is due to its design incorporating a scientifically developed series of angled jets creating a spiral vortex which produces a very efficient venturi effect.

And where special systems are required, they can be modified or adapted to solve your application problems.

Pneumatic (venturi) vacuum cleaners

Product code: VBV V500

1. A compact and lightweight industrial vacuum cleaner which works on compressed air.

2. Capable of cleaning off water, oil, and bottom sludge as well as dust and metal chippings.

3. It will even vacuum explosive materials as long as the machine is properly grounded from electrical current.

4. Designed to permit the use of an ordinary pail can with an outside diameter of 300mm to collect the dust and waste.

5. Supplied with a pail can, 2 meters of oil resistant hose, and an oil stopper which automatically stops suction when the receiver becomes full

6. Can be operated with Aro 380 or Aro 210 Interchangeable Push-Type quick connect couplings

Model BloVac V-500
Recommended air supply pressure 7 kg/cm2 or 100 psi
Approximate air consumption 14 cfm or 400 litres/min
Power 5 HP
Hose size 32mm diameter x 2 m (oil resisting)
Suction nozzle 32mm diameter/w 14mm 2 types available
Air inlet connection Quick-connect coupling PM-20
Air consumption at 5 kgf/cm2 400 ltr/min
Vacuum (in water column) at 5 kgf/cm2 3000 mm
Suction capacity at 5 kgf/cm2 2 M3

BloVac Nossels


BloVac Model
Diameter (A)
Nozzle Component
Length
Net Weight
Dia.
Port

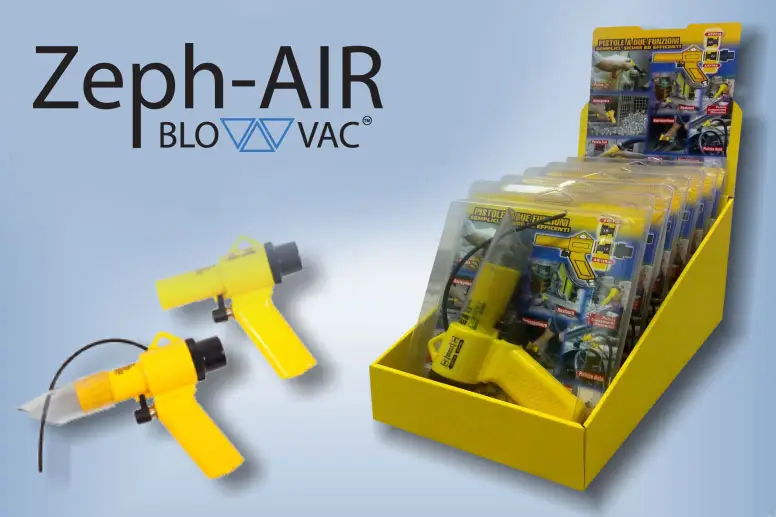

BloVac Zeph-Air
A-22kit
26mm
22mm
6 x Ø1.4mm
144mm
310g
A-11
14mm
11mm
3 x Ø1.4mm
142mm
260g
A-22
26mm
22mm
6 x Ø1.4mm
144mm
310g
